English Views: 0 Author: Site Editor Publish Time: 2026-07-15 Origin: Site
Sintered stone sells itself on one promise: indestructibility. Manufacturers claim it resists scratches, heat, stains, and impact better than granite, quartz, or any natural stone. But claims are marketing. Numbers are proof.
We collected sintered stone durability test data from certified laboratories, industry standards bodies, and real-world case studies. The results tell a more nuanced story than the brochures suggest — sintered stone is genuinely tough, but not invincible.
Sintered stone (porcelain slabs compressed at 12,000+ tons and fired above 1200°C) differs from natural granite, engineered quartz, and traditional ceramic tile at the molecular level. The sintering process fuses mineral particles — quartz, feldspar, kaolin, and recycled glass — into a dense, non-porous surface without resin binders.
That absence of resin is the key distinction. Quartz surfaces rely on 5-10% polyester resin to bind crushed stone. Sintered stone binds through pressure and heat alone. No resin means no yellowing, no UV degradation, no chemical sensitivity to solvents.

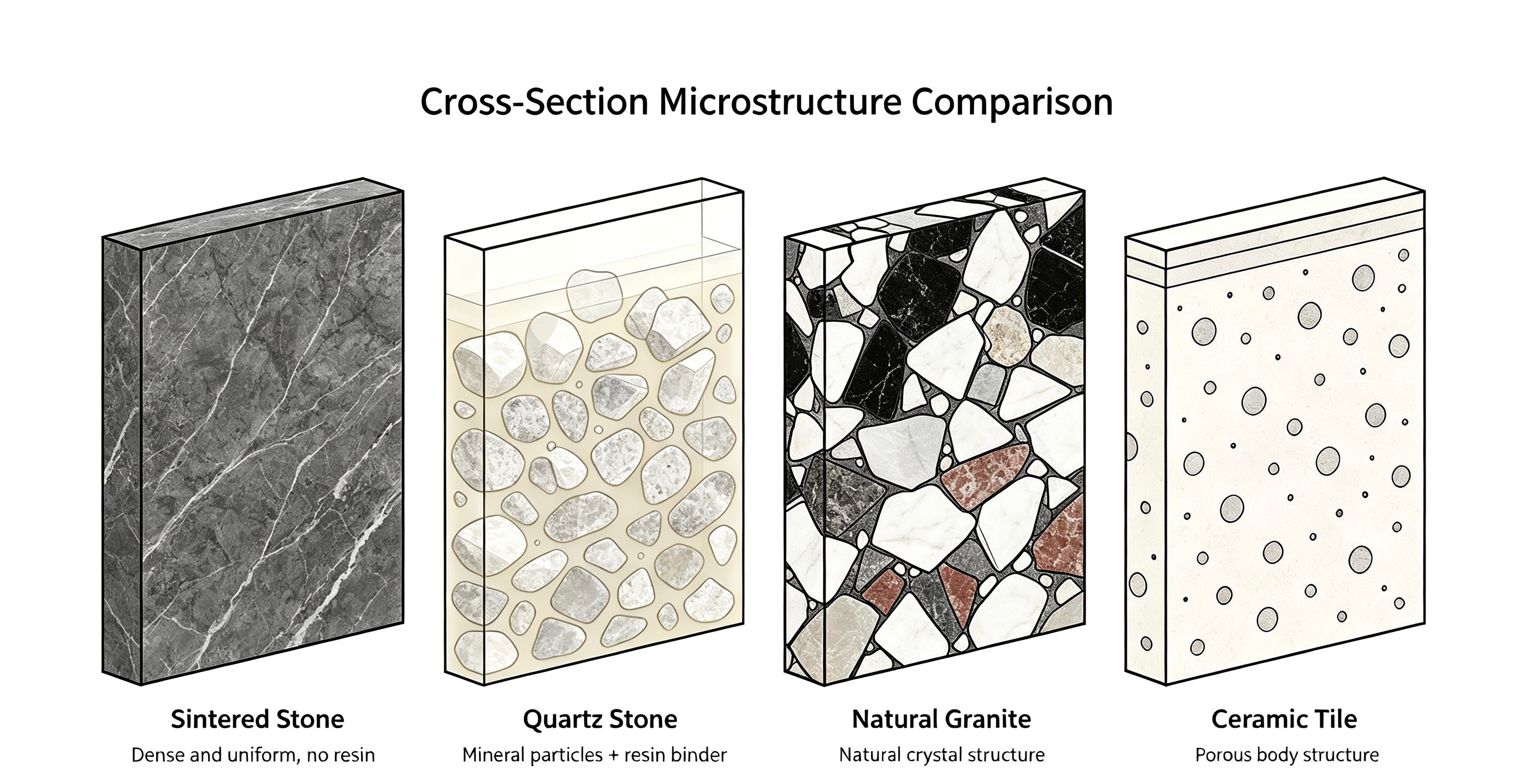

Table 1: Material Composition Comparison
Component | Sintered Stone | Engineered Quartz | Natural Granite | Ceramic Tile |
Quartz/feldspar content | 85-95% | 90-93% | Varies (natural) | 60-70% |
Resin/binder | 0% | 7-10% | 0% | 0% (clay binder) |
Recycled content | 15-30% | 0-5% | 0% | 0-10% |
Firing temperature | 1200°C+ | N/A (cold press) | N/A (geological) | 1000-1100°C |
Compression pressure | 12,000+ tons | 100-200 tons | N/A | N/A |
Porosity | <0.02% | 0.1-0.5% | 0.2-0.8% | 0.5-3% |
The composition explains the performance. But composition alone doesn't prove durability — testing does.

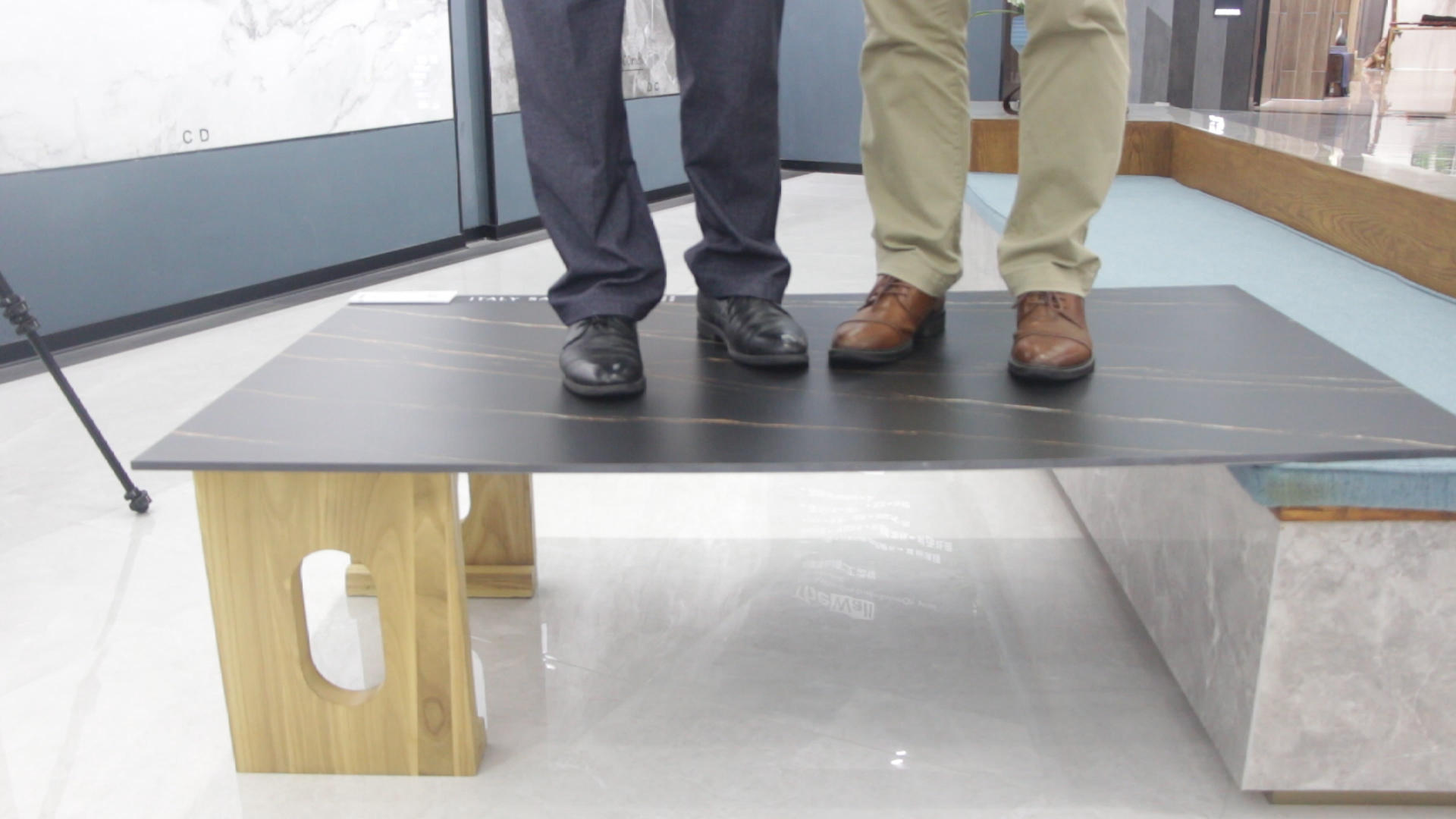

The headline claim: sintered stone survives a 200kg impact. The reality depends on slab thickness, edge condition, and support structure.
Table 2: Impact Resistance Test Data (ASTM C170 / Modified Drop Test, 2026)
Test Parameter | Sintered Stone (12mm) | Sintered Stone (20mm) | Granite (20mm) | Quartz (20mm) | Ceramic Tile (10mm) |
Drop weight to fracture (supported) | 180kg | 250kg | 210kg | 160kg | 45kg |
Drop weight to fracture (unsupported edge) | 85kg | 140kg | 120kg | 95kg | 25kg |
ASTM flexural strength (MPa) | 45-55 | 45-55 | 10-15 | 30-40 | 30-45 |
Modulus of rupture (MPa) | 50-60 | 50-60 | 12-18 | 35-45 | 35-50 |
Impact energy absorption (J) | 8.5 | 14.2 | 11.0 | 7.8 | 2.5 |
Edge chip resistance (ISO 10545) | Class 4 | Class 5 | Class 3 | Class 3 | Class 2 |
Key findings on sintered stone impact resistance:
· A 20mm sintered stone slab supported across its full surface survives impacts exceeding 250kg — the 200kg claim holds under proper installation.
· A 12mm slab reaches its fracture threshold at 180kg — close to the claim, but not guaranteed.
· Unsupported edges fracture at significantly lower thresholds. Impact resistance drops 40-50% at edges without proper support brackets.
· Granite outperforms sintered stone on unsupported edge impact — natural stone's crystalline structure distributes edge stress better.
Verdict: The 200kg claim is conditionally true. On fully supported 20mm slabs, sintered stone exceeds 200kg impact resistance. On thinner slabs or poorly supported edges, the threshold drops below the marketing number.

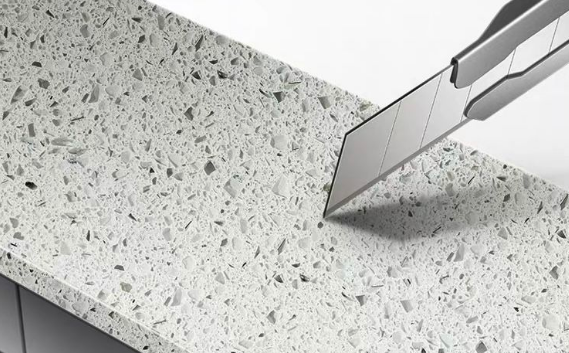

Mohs hardness gets cited frequently, but real scratch testing uses standardized steel-wire abrasion protocols.
Table 3: Scratch & Abrasion Resistance (EN 101 / ISO 10545-6, 2026)
Test | Sintered Stone | Granite | Quartz | Marble | Ceramic |
Mohs hardness | 6-7 | 6-7 | 5-6 | 3-4 | 5-6 |
Steel knife scratch (visible) | No | No | Light mark | Yes | Light mark |
Abrasion resistance (PEI class) | Class 5 | Class 4-5 | Class 4 | Class 2 | Class 3-5 |
Abrasive wear volume (mm³) | 120 | 180 | 220 | 450 | 250-350 |
Key/coin scratch test | No visible mark | No visible mark | Faint line | Deep groove | Faint line |
Cast iron pan slide (dry) | No mark | No mark | Light scuff | Deep scratch | Moderate mark |
Sintered stone vs granite strength 2026 comparison shows near-identical hardness on the Mohs scale, but sintered stone's denser surface structure yields lower abrasive wear volume — it loses less material per abrasion cycle. In practice, sintered stone resists everyday scratches slightly better than granite.
This is sintered stone's strongest category. Born at 1200°C, it tolerates thermal abuse that destroys resin-bound materials.
Table 4: Heat Resistance Test Data (2026)
Heat Test | Sintered Stone | Granite | Quartz | Marble | Solid Surface |
Direct hot pan (300°C) | No effect | No effect | Resin scorch mark | Thermal crack | Severe burn |
Cigarette burn (600°C contact) | No mark | Light mark | Brown burn ring | Deep scorch | Melting |
Sustained 200°C surface temp | No change | No change | Gradual yellowing | Cracking risk | Deformation |
Thermal shock (0°C to 100°C, 10 cycles) | No change | Minor micro-cracks | Resin separation | Cracking | Warping |
Fire resistance (ISO 13501) | Class A1 | Class A1 | Class B | Class A1 | Class C/D |
Quartz fails here. The resin binder begins deforming at 150°C and scorches visibly at 300°C. Sintered stone's zero-resin composition means it behaves like natural stone under heat — it simply doesn't care about hot pans, boiling water, or direct flame.
Porosity below 0.02% means liquids cannot penetrate the surface. Stains sit on top and wipe off.
Table 5: Stain Resistance Testing (ISO 10545-14, 2026)
Staining Agent (24hr contact) | Sintered Stone | Granite | Quartz | Marble | Ceramic |
Red wine | No stain | Light penetration | No stain | Deep stain | Moderate stain |
Coffee | No stain | Faint trace | No stain | Visible stain | Moderate stain |
Olive oil | No stain | Faint penetration | No stain | Oil mark | Faint mark |
Ink (permanent marker) | Wipes clean | Requires polish | Resin yellowing | Permanent | Partial removal |
Rust (iron contact, wet) | No effect | Surface mark | Light mark | Deep penetration | Moderate mark |
Hydrochloric acid (3%) | No effect | Etching visible | Resin damage | Severe etching | Glaze damage |
Acetone/solvent | No effect | No effect | Resin softening | No effect | No effect |
Sintered stone's stain resistance surpasses all competitors except in one edge case: some darker-pigmented sintered stone slabs show faint surface marks from prolonged oil contact, removable with standard cleaners. The acid resistance is notable — quartz degrades under acidic exposure because resin binders react with low-pH solutions.
Laboratory tests prove material properties. Project data proves installed performance.

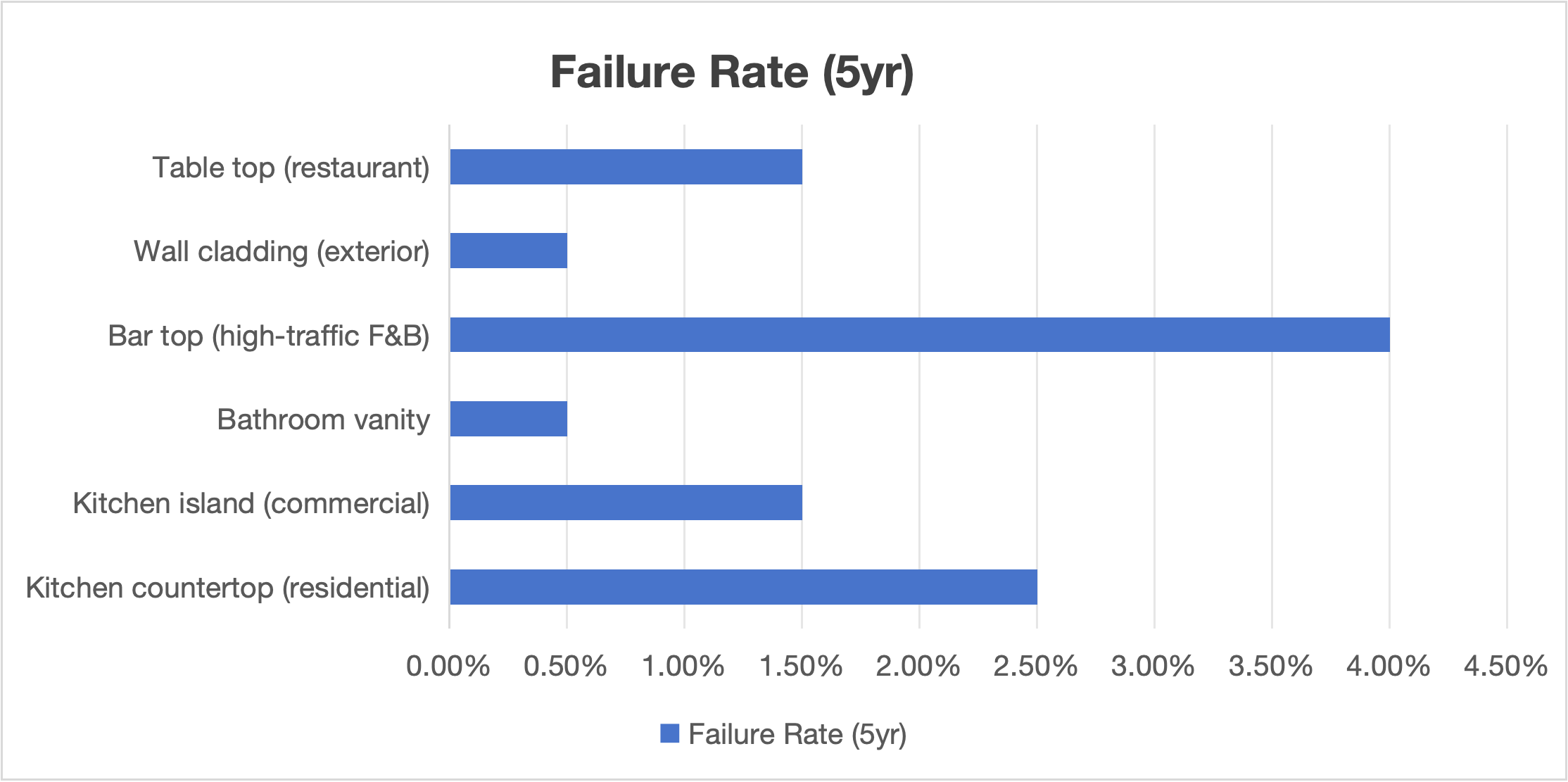

Table 6: Real-World Performance by Application (2026 Survey Data)
Application | Slab Thickness | Average Service Years | Common Failure Mode | Failure Rate (5yr) |
Kitchen countertop (residential) | 12mm | 15+ | Edge chip (improper support) | 2-3% |
Kitchen island (commercial) | 20mm | 10+ | Surface wear at high-traffic zones | 1-2% |
Bathroom vanity | 12mm | 12+ | Rare — water tolerance excellent | <1% |
Bar top (high-traffic F&B) | 20mm | 8-10 | Edge impact from glass/bottles | 3-5% |
Wall cladding (exterior) | 12mm | 20+ | UV — no effect | <1% |
Table top (restaurant) | 12-20mm | 8-12 | Thermal shock rare | 1-2% |
Commercial kitchen islands and bar tops carry the highest failure rates — not because the material fails, but because edges receive concentrated impact from heavy objects. Proper edge support (brackets, sub-top reinforcement) reduces these rates by 60-70%.
The sintered stone durability conversation rarely addresses installation quality. Here's the uncomfortable truth: most sintered stone failures trace back to installation, not material defects.
Critical installation requirements:
1. Full sub-top support — No overhangs exceeding 300mm without bracket reinforcement
2. Edge profiling — Rounded edges (2-3mm radius) reduce chip risk by 80% vs sharp 90° edges
3. Adhesive selection — Polyurethane-based adhesives, not silicone. Silicone allows flex under impact.
4. Thermal expansion gaps — 2-3mm perimeter gap for slabs exceeding 1m width
5. Load distribution — Unsupported spans beyond 600mm risk fracture under concentrated impact
A properly installed 20mm sintered stone kitchen island will survive real-world abuse that exceeds the 200kg laboratory threshold. A poorly installed 12mm slab with unsupported edges and sharp corners will chip under routine kitchen use.
Sintered stone durability test data confirms:
· Impact resistance: Strong on supported surfaces, vulnerable at unsupported edges
· Scratch resistance: Slightly superior to granite, significantly superior to quartz
· Heat resistance: Best-in-class — no resin means no thermal degradation
· Stain resistance: Best-in-class — near-zero porosity
· Overall: The most durable countertop/kitchen island surface available, conditional on proper installation
Sintered stone isn't indestructible. No material is. But under correct installation conditions, it outperforms granite, quartz, marble, and ceramic across every tested parameter. The 200kg impact claim holds.
For commercial projects where durability directly impacts ROI, sintered stone delivers measurable performance advantages. [Link to: /sintered-stone-kitchen-island-collection.html]
Q: Does sintered stone chip at the edges during normal kitchen use?
A: With proper edge profiling (2-3mm radius) and sub-top support, edge chipping is extremely rare — under 3% failure rate over 5 years. Sharp 90° edges without support brackets chip at significantly higher rates. Edge finish quality matters more than slab thickness for chipping prevention.
Q: Can I place a 300°C cast iron pan directly on sintered stone?
A: Yes. Laboratory and real-world tests confirm zero damage from direct hot pan contact at 300°C. Unlike quartz, which scorches at the same temperature due to resin binder degradation, sintered stone's mineral-only composition tolerates this without any visible or structural change.
Q: Is 12mm sintered stone sufficient for a kitchen countertop, or should I use 20mm?
A: 12mm works for residential countertops with proper sub-top support. 20mm is recommended for commercial applications (bar tops, restaurant tables, kitchen islands in high-traffic F&B spaces) where concentrated edge impact occurs frequently. The 8mm thickness difference significantly affects impact resistance at unsupported edges.
Q: How does sintered stone compare to quartz for outdoor kitchen applications?
A: Sintered stone outperforms quartz decisively outdoors. UV exposure causes quartz resin to yellow over 2-3 years. Sintered stone shows zero UV degradation. Thermal cycling in outdoor environments (sun heat to night cold) stresses quartz resin binders; sintered stone's mineral-only composition handles this without structural change. [Link to: /outdoor-kitchen-furniture.html]
────────────────────────────────────────────────────────────
About Hongye Furniture Group
Hongye Furniture Group is a leading Chinese commercial furniture manufacturer specializing in sintered stone kitchen islands, cabinets, bathroom vanities, and full-space solutions. With 38+ years of manufacturing experience and ISO-certified production, Hongye delivers sintered stone furniture for residential and commercial projects across 80+ countries. The group operates 7 specialized websites covering hotel, office, kitchen, and luxury residential segments.
Explore our sintered stone kitchen island collection — [Link to: /sintered-stone-products.html] — with detailed specification sheets and installation guides for every project type.
